NAIL GUN MOUNT
PRESS-FIT SUPPORT
PRESS-FIT BUTTON
CLICK-ON SUPPORT
PRESS-FIT PLUG
RAISED-HEAD PLUG
THREADED MOUNT
THREADED PLUG
ROD/PIPE SUPPORT
SCREW-MOUNT EYELET SUPPORT
SADDLE-TYPE MOUNT
Bi-directional Bases
ROUND
ROUND WITH SELF-ADHESIVE
SQUARE
SQUARE WITH SELF-ADHESIVE
DOUBLE SQUARE WITH SELF-ADHESIVE
Accessories
ID TAGS
SELF-ADHESIVE CLIPS
Cable tie mount to be applied with nail gun
The Ssc nail gun mount is made of engineering plastic. It features a flat base body with a central through-hole and a circular, flared upper profile. 4 side guides allow application of the cable tie (maximum width 9mm) to anchor cable raceways.
The Ssc nail gun mount must be applied with a nail gun.
Technical specifications
Winged press-fit support
The Sle press-fit support is made of engineering plastic. It consists of a body with a winged press-fit support and a trapezoidal slotted head that allows application of the cable tie (maximum width 5 mm).
The support can be applied by hand.
Technical specifications
Press-fit button mount
The Sub press-fit button mount is made of engineering plastic. It consists of a button-shaped base and a hollow body on the outer part. The central guide allows application of a cable tie (maximum width 4.5 mm).
The support can be applied by hand.
Technical specifications
Saddle-type click-on support
The Sup saddle-type support is made of engineering plastic. It consists of a spike-shaped body and a central guide that allows application of the cable tie (maximum width 12.5 mm). The shape of the support allows attachment to surfaces with through-holes.
The support can be applied by hand.
Technical specifications
Threaded mount
The Suf threaded mount is made of engineering plastic. It consists of a square head with a threaded through-hole. Two side guides at the ends of the head allow application of a cable tie (maximum width 9 mm). The product can be used with press-fit plug code Alf.
Technical specifications
Installation method
The instructions below describe how to install threaded mounts (SUF) together with threaded press-fit plugs (ALF):
1) Drill a Ø 8 mm hole that is 40 mm deep.
2) Knock the threaded press-fit plug (ALF) all the way in.
3) Screw the threaded mount (SUF) as far as it will go, without forcing.
4) To complete the fixing process fit a collar or cable tie (maximum width 9 mm) in the slot.
Raised-head press-fit plug
The Ale press-fit plug is made of engineering plastic. It consists of a body with press-fit support for anchoring to blind holes and a slotted head that rests on a spacer to allow application of the cable tie (maximum width 9 mm).
The support can be applied by hand.
Technical specifications
Press-fit plug
The Ale press-fit plug is made of engineering plastic. It consists of a body with a press-fit support that anchors to blind holes and a slotted rectangular head that allows application of the cable tie (maximum width 9 mm).
Technical specifications
Installation method

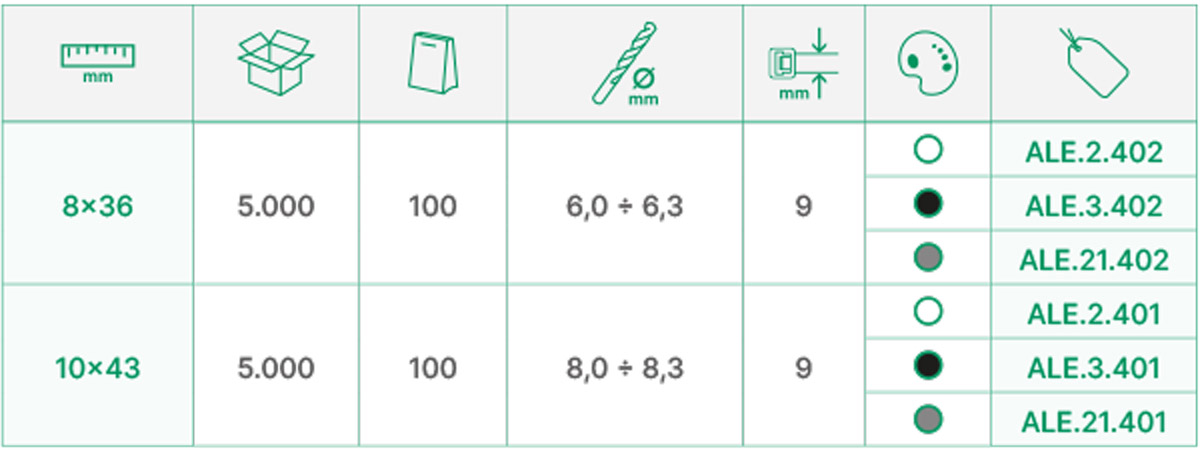

1) To fit a 10×43 plug, drill a Ø 8 mm hole that is 40 mm deep. To fit a 8×36 plug, drill a Ø 6 mm hole that is 33 mm deep.
2) Knock the fir tree plug all the way in.
3) To complete the fixing process fit a collar or cable tie (maximum width 9 mm) in the slot.
Threaded press-fit plug
The Alf press-fit plug is made of engineering plastic. It consists of a body with a press-fit support and a threaded head that can be used with a cable tie with support (Fsu) or threaded mount (Suf).
The support can be applied by hand or with a hammer.
Technical specifications
Rod/pipe support
The Sup rod/pipe support is made of engineering plastic. It consists of a square, hollow body that allows two cable ties to be fitted (maximum width 9 mm). This support allows pipes and rod to be paired, keeping them parallel.
The support can be applied by hand.
Technical specifications
Screw-mount eyelet support
The Sup screw-mount eyelet support is made of engineering plastic. It consists of an eyelet to anchor the product and a single horizontal head that allows application of the cable tie (maximum width 5mm).
The support must be anchored with a screw or plug (not included).
Technical specifications
Saddle-type mount

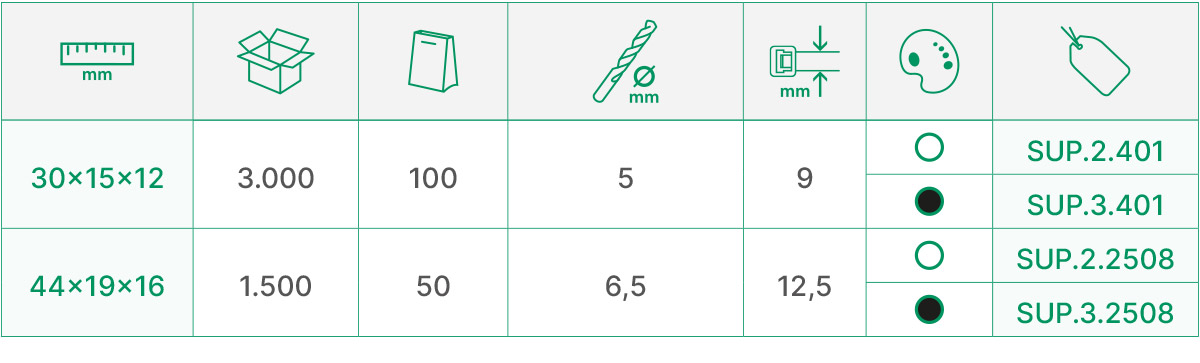

The Sup saddle-type mount is made of engineering plastic. It consists of a body with a central through-hole and two side guides at the ends of the head that allow application of the cable tie (maximum width 13 mm). The spacer ensures the cables are insulated with respect to the application surface.
The mount must be anchored with a screw or plug (not included)
Technical specifications
Round bi-directional base
The Bas bi-directional base is made of self-extinguishing polyamide 6.6 (UL94:V2). It consists of a body with a round base with a central through-hole for anchoring and 4 side guides on the top that allow application of the cable tie (maximum width 4.5 mm).
The support must be anchored with a screw or plug (not included).
Technical specifications
Round bi-directional base with self-adhesive
The Bas bi-directional base is made of self-extinguishing polyamide 6.6 (UL94:V2). It consists of a round base body, self-adhesive and 4 side guides on the top that allow application of the cable tie (maximum width 4.5 mm).
It is recommended that you apply the base on a smooth grease-free surface.
Technical specifications
Square bi-directional base
The Bas bi-directional base is made of self-extinguishing polyamide 6.6 (UL94:V2). It consists of a body with a square base with a central through-hole for anchoring and 4 side guides on the top that allow application of the cable tie (maximum width 4.5 mm).
The support must be anchored with a screw or plug (not included).
Technical specifications
Square bi-directional base with self-adhesive
The Bas bi-directional base is made of self-extinguishing polyamide 6.6 (UL94:V2). It consists of a square base body, self-adhesive and 4 side guides on the top that allow application of the cable tie (maximum width 4.5 mm).
It is recommended that you apply the base on a smooth grease-free surface.
Technical specifications
Double square base with self-adhesive
The Bas bi-directional double base is made of self-extinguishing polyamide 6.6 (UL94:V2) and consists of a dual square body with self-adhesive base. Each base has 4 side guides on the top that allow application of the cable ties (maximum width 4.5 mm). The self-adhesive aids manual detachment and usage of the individual product.
It is recommended that you apply the base on a smooth grease-free surface.
Technical specifications
ID tags
The Pid identification tag is made of self-extinguishing polyamide 6.6. It consists of a rectangular 20 x 40 mm body and 4 guides that allow application of the cable tie (maximum width 5 mm). Users can apply a label to the tag surface or write on it with a marker pen.
The tag can be applied by hand.
Technical specifications
Self-adhesive clips
Gan clips are made of self-extinguishing polyamide 6.6. They consist of a square base body, self-adhesive and a hook-shaped head. The shaping allows easy stowage and removal of one or more cables (maximum diameter 15 mm) without any risk of damaging the insulation.
It is recommended that you apply the base on a smooth grease-free surface.
Technical specifications
